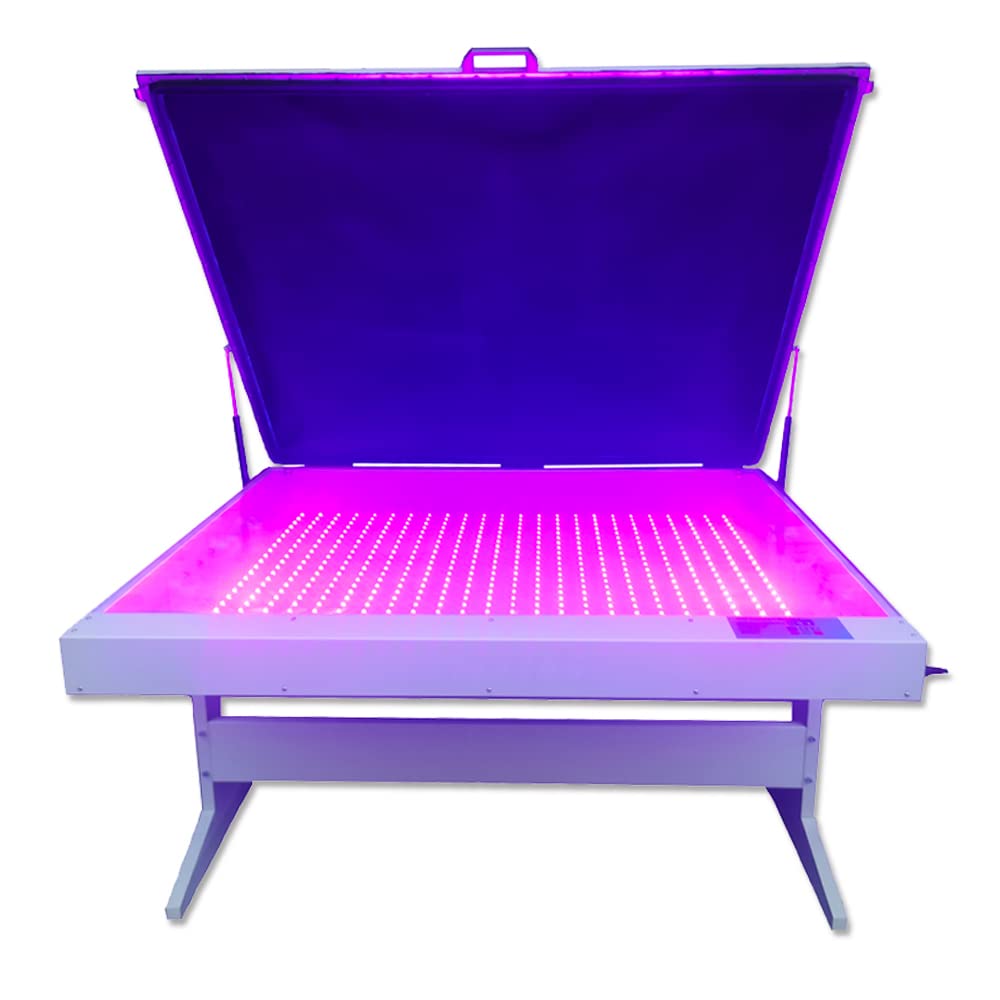

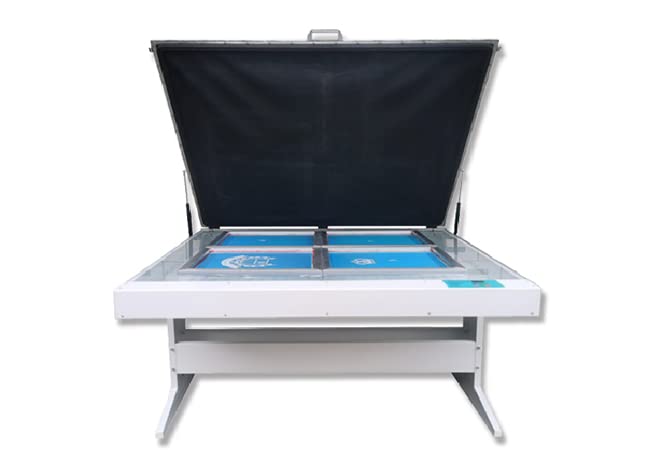

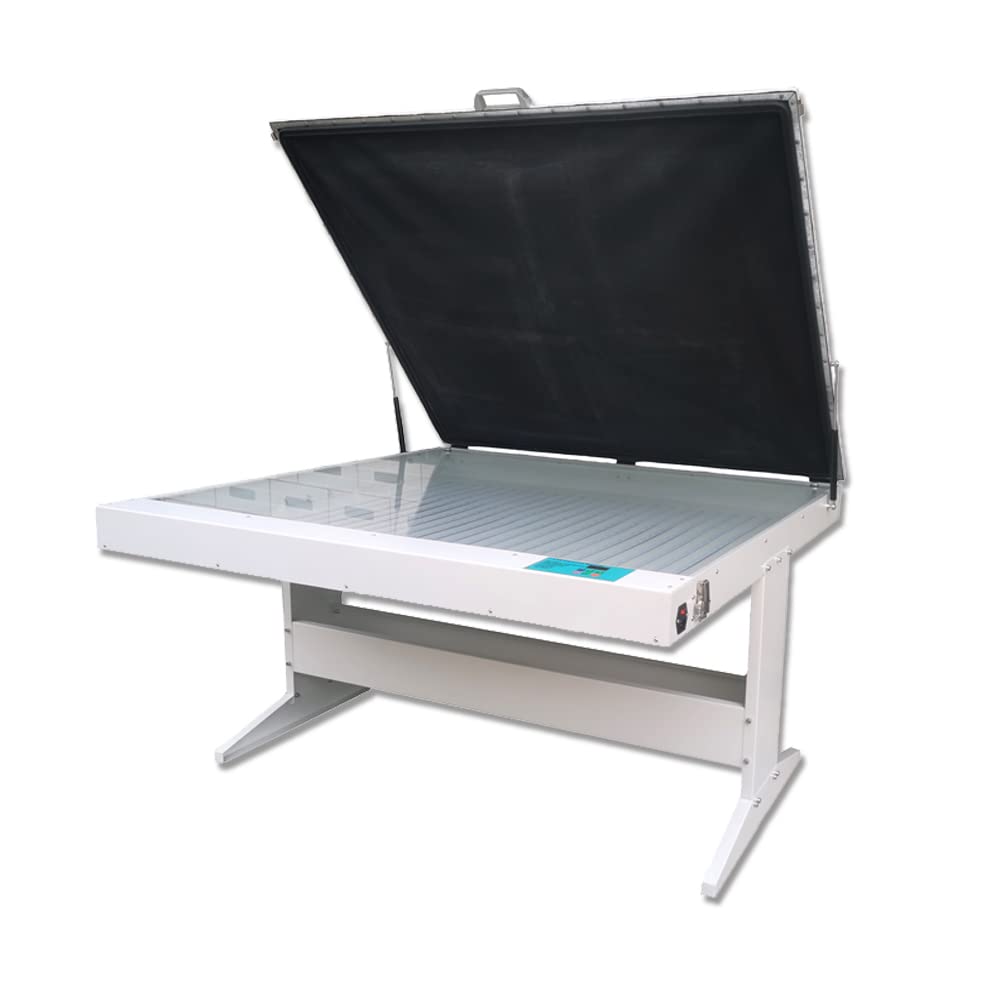

42" x 50" 300W LED UV Exposure Unit for Screen Printing - Professional Vacuum Exposure Machine with Precise Timing - Perfect for T-Shirt Printing, Sign Making & PCB Fabrication
Free shipping on all orders over $50
7-15 days international
9 people viewing this product right now!
30-day free returns
Secure checkout
53964190
Description
Qomolangma Precise 42" x 50" 300W Vacuum LED UV Exposure Unit The LED exposure unit is used in the filed of plate-making such as pad plate, screen plate, hot stamper plate, resin plate. when you put the film onto the plate into UV LED exposure machine, start it, the emulsion on the plate will appear a unseen imagine. this is important process on all plate-making technology. Specification: Max.exposing area(mm): 42"x 50"/1050 x 1270 mm Voltage (single phase ): 220V or 110V Power of lamps: 300W (24 12W UV LED-line) Control panel: PLC Light source: LED UV Time control: 0-999s Wavelength: 395NM Angle of diffusion: 120 Distance between strips and glass: 3.5"/90 mm Packing size: 57.5" x 52" x 11.8"/1460 x 1320 x 300 mm Gross Weight: 297 lbs/135 kg
Features

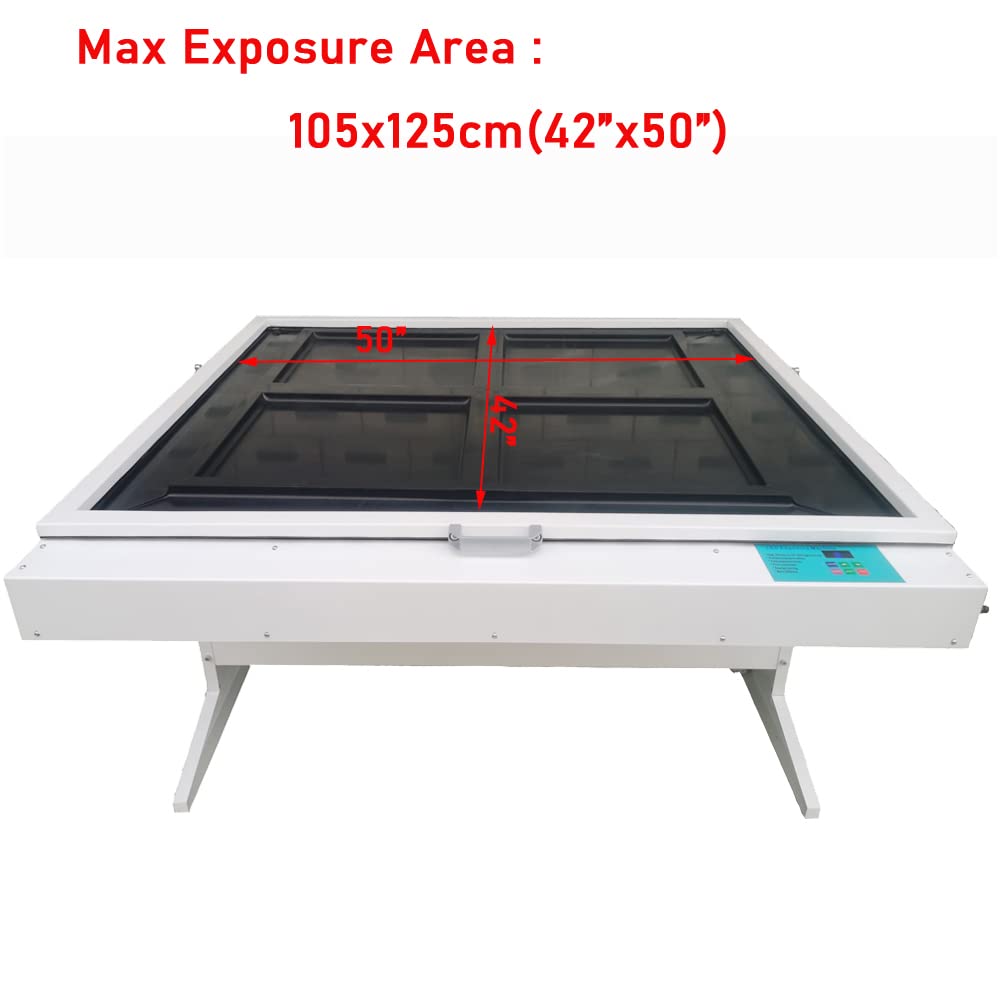

Max.exposing area 42"x 50"/1050 x 1270 mm
Power of lamps 300W (24 12W UV LED-line); Perfect exposure effect because of LED light; Fast exposure time,about 40-70 seconds.
Vacuum model, use high quality rubber cloth, Stable exposure quality, longer lifetime.

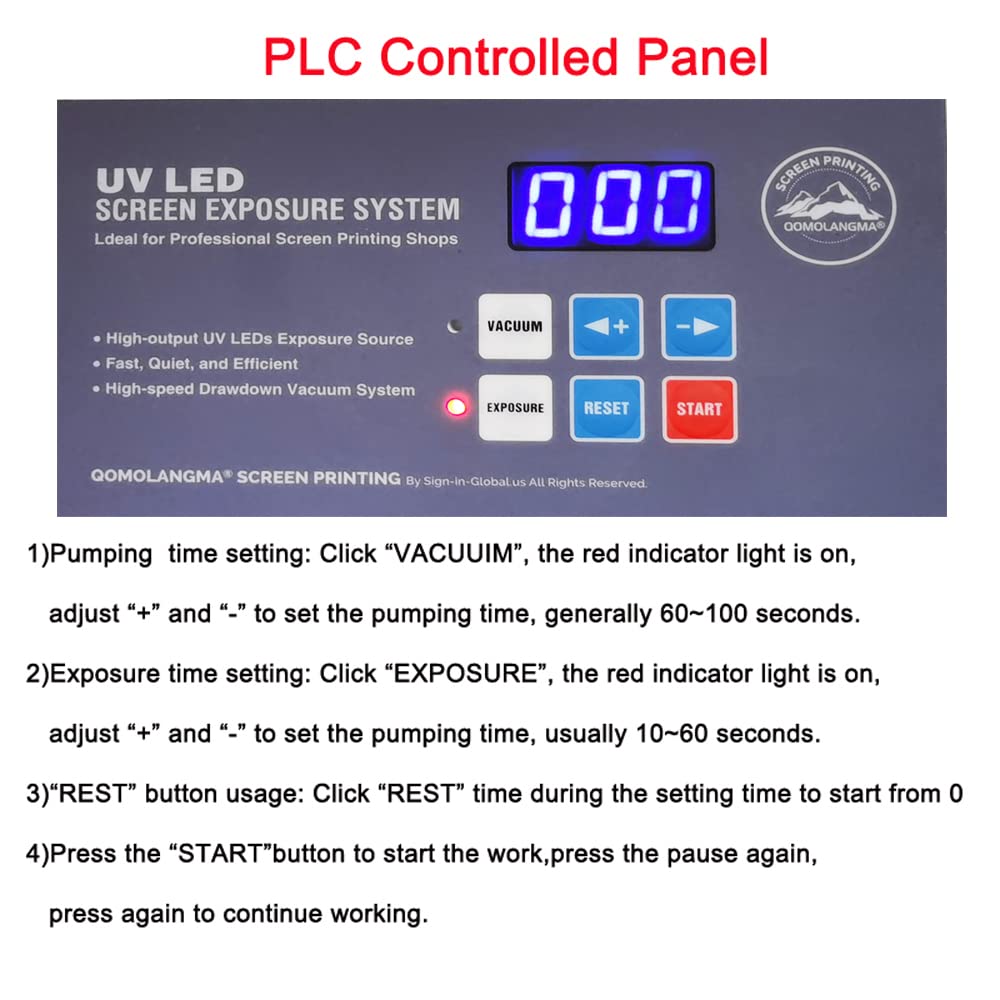

Easy to Use PLC controlled panel, very easy to operate. Automatic memory function for working as original seting next time
Application The LED exposure unit is used in the filed of plate-making such as pad plate, screen plate, hot stamper plate, resin plate. when you put the film onto the plate into UV LED exposure machine, start it, the emulsion on the plate will appear a unseen imagine. this is important process on all plate-making technology.
